Chinook-LTE
Multiband antenna wide range suitable for applications: 868/915MHz (LoRa, LoRaWAN, Sigfox, ISM), GSM-GPRS 900/1800MHz, 3G-UMTS 2100MHz, WiFi 2.4GHz, 4G-LTE / 5G (Bands: 1, 2, 3, 5, 7, 8, 20, 28 77, 78) Omnidirectional antenna with radiating element specific for each frequency range (with mixed geometry λ/4 - ¼ wave 5/8 wave)
Frequency range:
698-960 MHz
1710-2170 MHz
2400-2690 MHz
3300-3800 MHz
Standard:
LoRa
LoRaWAN
Sigfox
ISM
GSM-GPRS 900/1800MHz 3G-UMTS 2100MHz
WiFi 2.4GHz
4G-LTE / 5G (Bande 1, 2, 3, 5, 7, 8, 20, 28, 77, 78)
Max power:
25 W
Polarisation:
Linear
Radiation:
Omnidirectional
Gain:
698-960 MHz: 2.1 dBi
1710-2170 MHz: 3.5 dBi
2400-2690 MHz: 4.5 dBi
3300-3800 MHz: 4.5 dBi
Installation:

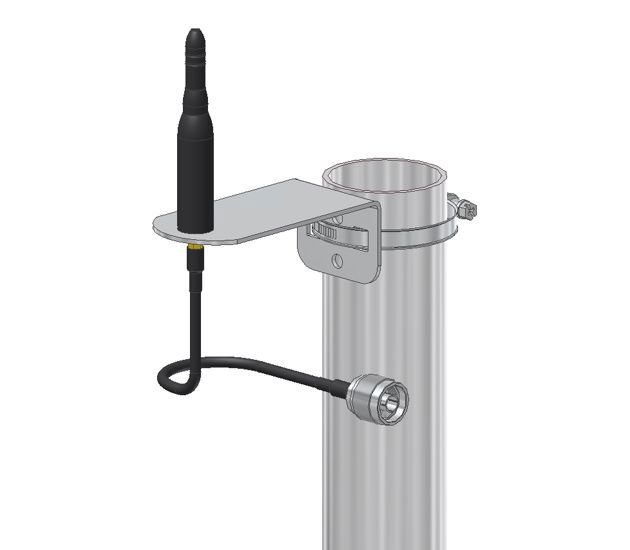

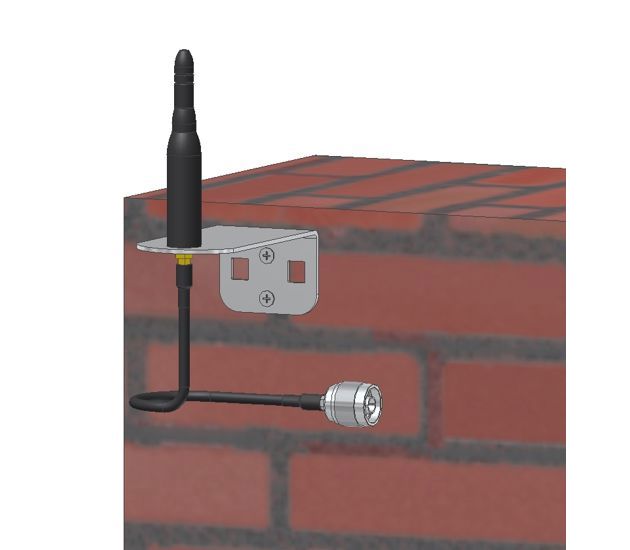

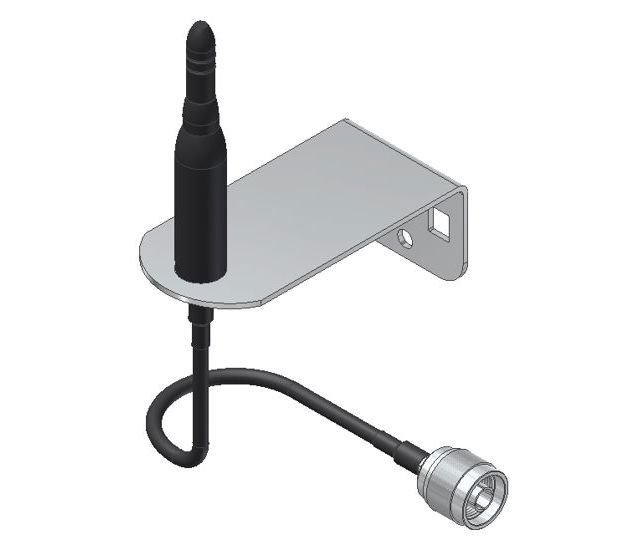

On box, oron wall or on pole using optional bracket and extension kit.
